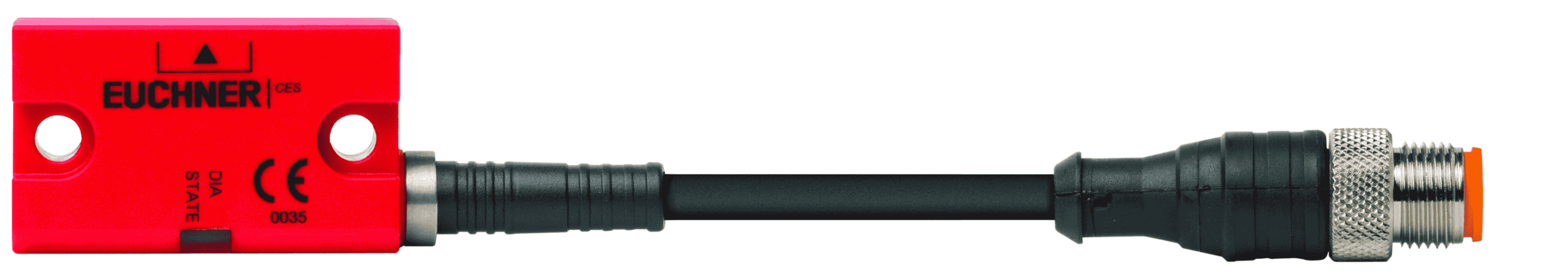

Công tắc an toàn CES-I-AP-U-C04-USI-115150 (Euchner 115150)
Thông số kỹ thuật công tắc toàn Euchner CES-I-AP-U-C04-USI-115150 (Order no. 115150)
đại lý euchner | đại lý CES-I-AP-U-C04-USI-115150 | đại lý 115150
nhà phân phối euchner | nhà phân phối CES-I-AP-U-C04-USI-115150 | Safety relay 115150
![ast_630695-25 ECOLAB__](https://thietbi-dien.com/wp-content/uploads/2023/08/ast_630695-25.png)
Độ chính xác R | |
nach EN 60947-5-2 |
Electrical connection values
Cầu chì | |
extern (Betriebsspannung) | 0.25 … 8 A |
Điện áp cách điện định mức Ui | 300 V |
Điện áp chịu xung định mức Uimp | 1.5 kV |
Điện áp hoạt động DC | |
UB | 24 V DC -15% … +15% regulated, residual ripple(The device tolerates voltage interruptions in the operating voltage, e.g. test pulses, of up to 5 ms. These voltage interruptions are also output on the outputs.) |
Turn-on time | |
Sicherheitsausgänge | max. 300 ms |
EMC yêu cầu bảo vệ | gemäß EN IEC 60947-5-3 |
Risk time according to EN 60947-5-3 | max. 260 ms |
Cấp an toàn | III |
Mức tiêu thụ dòng điện | |
no load on outputs | max. 35 mA |
Mức độ ô nhiễm (external, according to EN 60947-1) | 3 |
Sicherheitsausgänge FO1A / FO1B | |
Kiểu đầu ra | Semiconductor outputs, p-switching, short circuit-proof |
Điện áp đầu ra | |
HIGH U(FO1A) / U(FO1B) | UB-1.5V … UB V DC (Values at a switching current of 50 mA without taking into account the cable lengths.) |
LOW U(FO1A) / U(FO1B) | 0 … 1 V DC |
dòng điện ngắn mạch định mức | 100 A |
Thời gian chênh lệch | max. 10 ms |
Danh mục sử dụng | |
DC-13 | 24V 150mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads.) |
Off-state current Ir | max. 0.25 mA |
Chuyển đổi dòng điện | |
per safety output | 1 … 150 mA |
Thời lượng xung kiểm tra | max. 0.3 ms (Applies to a load with C |
Test pulse interval | min. 100 ms |
Kết nối type | PUR cable, 100 mm, with plug connector M12x1, 5-pin; pin 5 not used |
Mô men xoắn | |
Fixing screws | max. 0.8 Nm |
Thời gian trễ | 0.5 s |
Dynamic bending radius | 10 x cable diameter |
Static bending radius | 5 x cable diameter |
Định hướng cài đặt | any |
Tần số chuyển đổi | max. 1 Hz |
Khoảng cách lắp đặt | |
between 2 switches or 2 actuators | min. 80 mm |
Kiểu gắn kết | Surface mounting on metal |
Chống sốc và rung | gemäß EN IEC 60947-5-3 |
Cấp bảo vệ | IP67 |
Cable ambient temperature (dynamic) | -25 … +65 °C |
Cable ambient temperature (static) | -25 … +65 °C |
Material | |
Rubber support | NBR 80 ±5 Shore |
Gehäuse | Kunststoff, PBT |
Kennwerte nach EN ISO 13849-1 / EN IEC 62061
PL | maximaler SIL | PFHD | Kategorie | Gebrauchsdauer | |
---|---|---|---|---|---|
Monitoring of the guard position | PL e | – | 4.1×10-9 | 4 | 20 y |
The following applies to the approval according to UL | Betrieb nur mit UL-Class 2 Spannungsversorgung oder gleichwertigen Maßnahmen |
Additional feature | Rubber support included |
In combination with actuator CES-A-BDN-06-161742
Switch-on distance | |
Installation position C | 23 mm |
Installation position A | 26 mm |
Secured switch-off distance sar | |
Installation position C | max. 72 mm |
Installation position A | max. 77 mm |
Secured switching distance sao | |
Installation position A | min. 16 mm |
Installation position C | min. 10 mm |
Switching hysteresis | 1 … 2 mm |
In combination with actuator CES-A-BBN-C04-115271, CES-A-BBN-C04-EX-137527
Switch-on distance | |
Installation position C or D (broad side) | 11 mm |
Installation position A or B (front side) | 15 mm |
Secured switch-off distance sar | |
in x/z direction | max. 40 mm |
in y direction | max. 60 mm |
Secured switching distance sao | |
Installation position A or B (front side) | min. 10 mm |
Installation position C or D (broad side) | min. 6 mm |
Switching hysteresis | 1 … 2 mm |
In combination with actuator CES-A-BDN-06-104730
Switch-on distance | |
Installation position A or B (front side) | 19 mm |
Installation position C or D (broad side) | 15 mm |
Secured switch-off distance sar | |
in y direction | max. 60 mm |
in x/z direction | max. 40 mm |
Secured switching distance sao | |
Installation position A or B (front side) | min. 14 mm |
Installation position C or D (broad side) | min. 10 mm |
Switching hysteresis | 1 … 2 mm |
In combination with actuator CES-A-BBN-161502
Switch-on distance | |
Installation position A + B | 30 mm |
Installation position C + D | 25 mm |
Secured switch-off distance sar | |
in x/z direction / installation position C + D | max. 63 mm |
in y direction / installation position A + B | max. 77 mm |
in x/z direction / installation position A + B | max. 69 mm |
in y direction / installation position C + D | max. 72 mm |
Secured switching distance sao | |
in x direction/installation position C + D | min. 10 mm |
in z direction / installation position A + B | min. 15 mm |
Switching hysteresis | |
in x direction/installation position C + D | 1 … 2 mm |
in z direction / installation position A + B | 1 … 2 mm |
